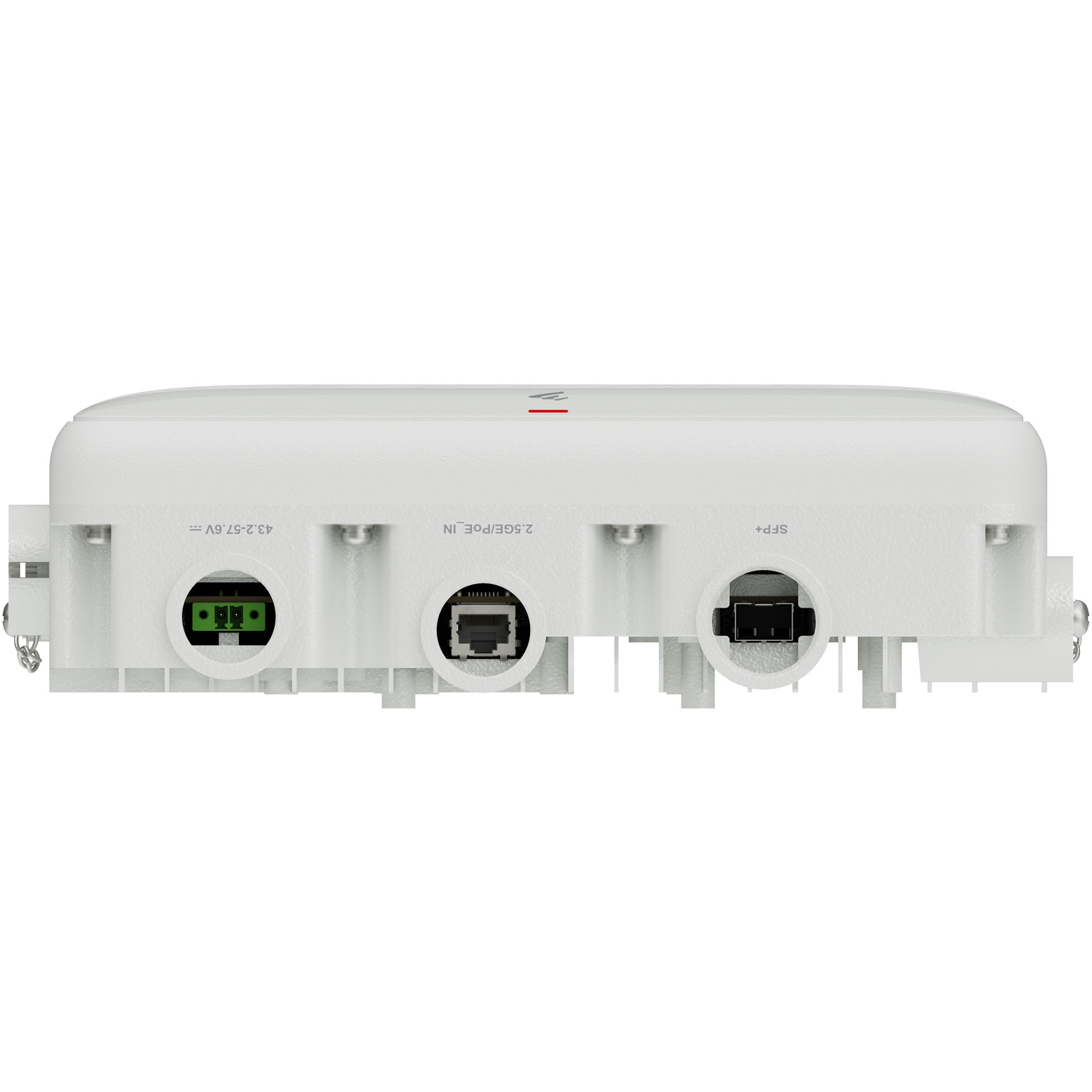

HUAWEI eKIT AP772E BE6450 WIFI7 6450MBPS 1X 2,5 ET X 1 X 10G SFP+ SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ OUTDOOR 7

HUAWEI eKIT AP772E BE6450

WIFI7 6450MBPS 1X 2,5 ET X 1 X 10G SFP+ SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ OUTDOOR

Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be
Installation Type	Wall,Pole
Optimal Signal Distance (m)	250
Max Number of Access Users	1024
Recommended Number of Access Users	130
Device Rate	6.45 Gbps
Maximum number of physical ports on the entire device	2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing 10GE optical (SFP+), GE/2.5GE/10GE auto-sensing
Radio number	2
Maximum channel bandwidth [MHz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz
Maximum transmit power	2.4 GHz: 25 dBm/chain 28 dBm (combined power) 5 GHz: 24 dBm/chain 30 dBm (combined power)
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 4x4
Maximum power consumption [W]	20.4 (excluding USB)
Input voltage range [V]	DC: 43.2 V to 57.6 V PoE: 802.3bt/at/af
Dimensions without packaging (H x W x D) [mm(in.)]	220 mm x 250 mm x 77 mm (8.66 in. x 9.84 in. x 3.03 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	170 mm x 555 mm x 370 mm (6.69 in. x 21.85 in. x 14.57 in.)
Weight without packaging [kg(lb)]	2.76 kg (6.08 lb)
Weight with packaging [kg(lb)]	5.65 kg (12.46 lb)
Long-term operating temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]	Operating humidity: 0% RH to 100% RH Storage humidity: 5% RH to 95% RH (non-condensing)
Radio interface	Built-in directional antennas
Antenna gain	2.4 GHz: 10 dBi/chain (peak value) 10 dBi (combined gain) 5 GHz: 11 dBi/chain (peak value) 10 dBi (combined gain)
Operating frequency band	2.4GHz,5GHz
Ingress protection level (dustproof/waterproof)	IP68
Power supply mode	PoE,DC power adapter
Rated input voltage [V]	DC: 48 V PoE: 802.3bt/at/af

Kategori	Access Point
POE Desteği	Var
3G/4G Desteği	Yok
Port Sayısı	1 Port
Ortam	Dış Ortam
Frekans	WiFi 7
SFP Desteği	Var
USB Desteği	Yok
