Model

RG-RAP2260(G)

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n/ax ：2.4G ~ 2.4835GHz

802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific)

Antenna

Internal antennas(2.4G: 3dBi，5G: 3dBi)

Spatial Streams

2.4G 2x2MIMO  5G 2x2MIMO

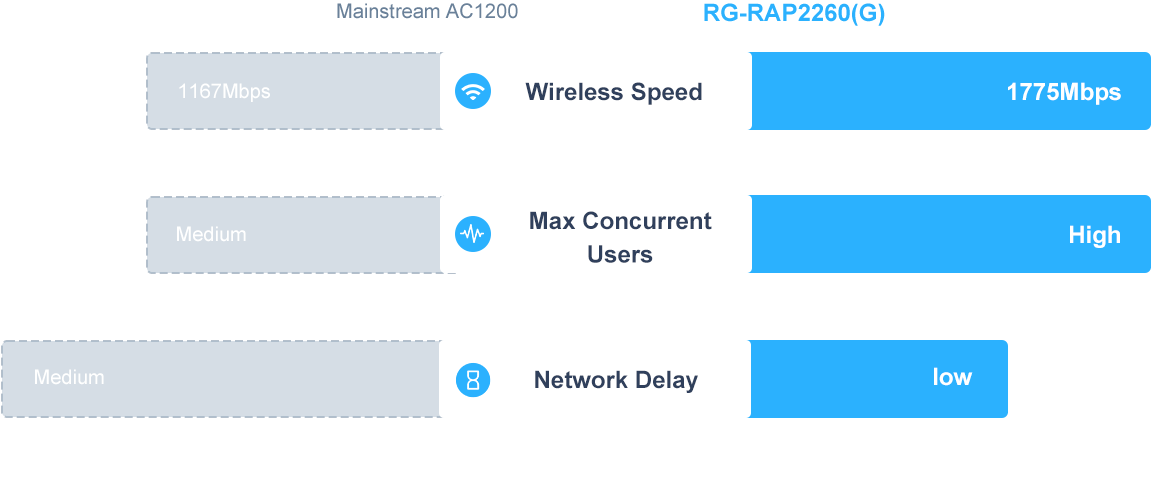

Max Throughput

Up to 574Mbps at 2.4G

Up to 1201Mbps at 5G

1.775Gbp per AP

Modulation

OFDM：

BPSK@6/9Mbps，QPSK@12/18Mbps，16QAM@24Mbps，64QAM@48/54Mbps

DSSS：

DBPSK@1Mbps，DQPSK@2Mbps，

and [email protected]/11Mbps

MIMO-OFDM：

BPSK，QPSK，16QAM ，64QAM，256QAM and1024QAM

OFDMA

Receive Sensitivity

11b：

-96dBm(1Mbps)，

-93dBm(5Mbps)，

-89dBm(11Mbps)

11a/g：

-91dBm(6Mbps)，

-85dBm(24Mbps)，

-80dBm(36Mbps)，

-74dBm(54Mbps)

11n：

-90dBm(MCS0)，

-70dBm(MCS7)，

-89dBm(MCS8)，

-68dBm(MCS15)

11ac：

20MHz：-88dBm(MCS0), -63dBm(MCS9)

40MHz：-85dBm(MCS0), -60dBm(MCS9)

80MHz：-85dBm(MCS0), -60dBm(MCS9)

Wi-Fi 6：

80MHz：-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11)

Maximum output power of the transmitter
(single stream)

2.4GHz(2.4~2.4835GHz)：23dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm

(country-specific，comply with local laws)

Adjustable Power

1dBm

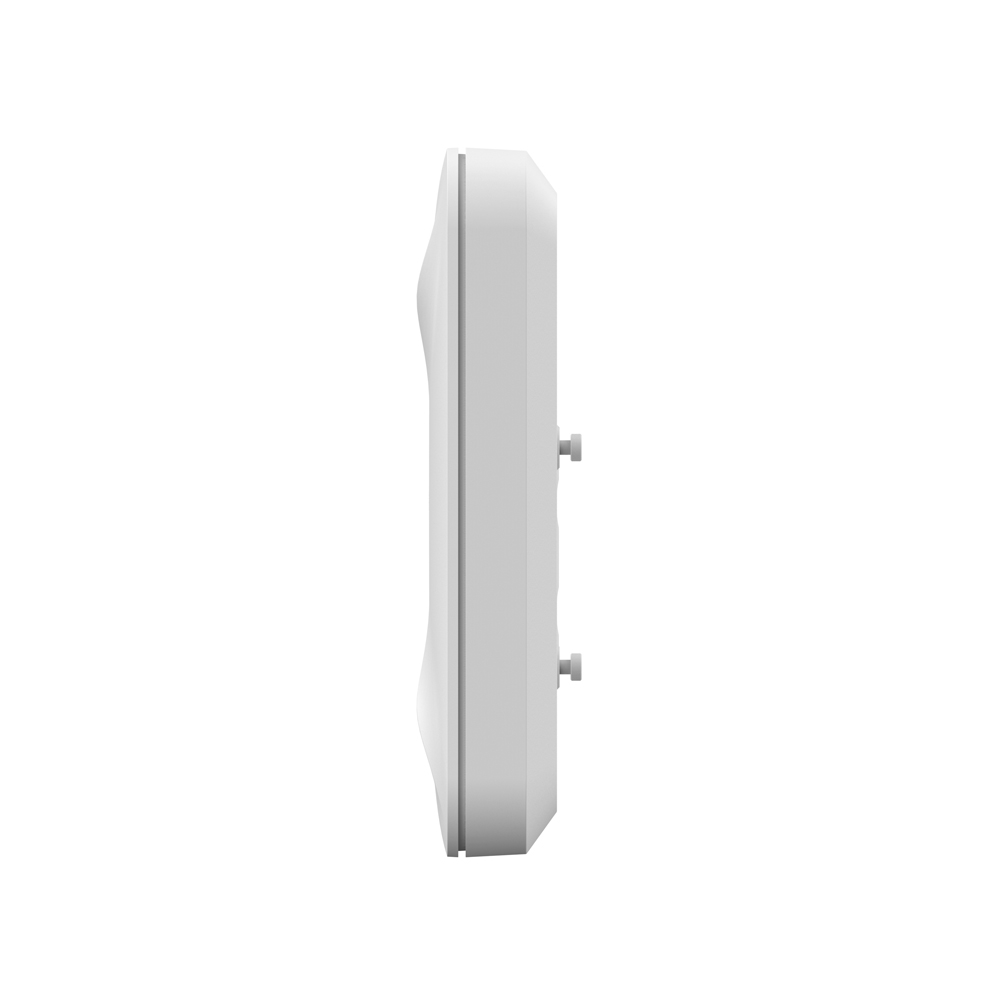

Dimensions

194mm×194mm×35mm (excluding mounting kits)

Weight

0.56kg (excluding mounting kits)

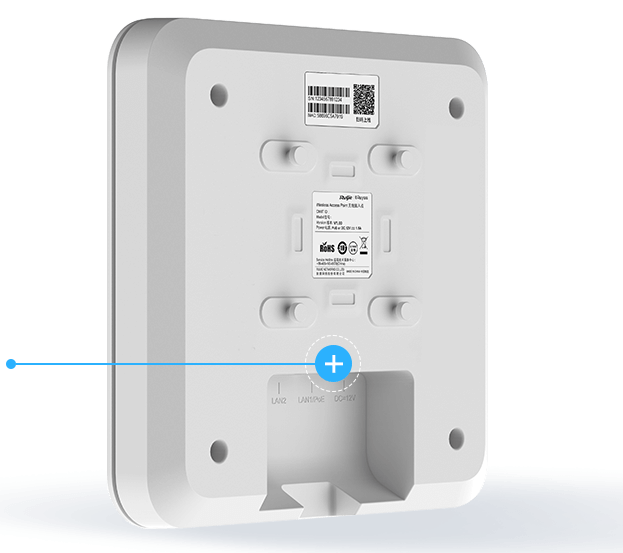

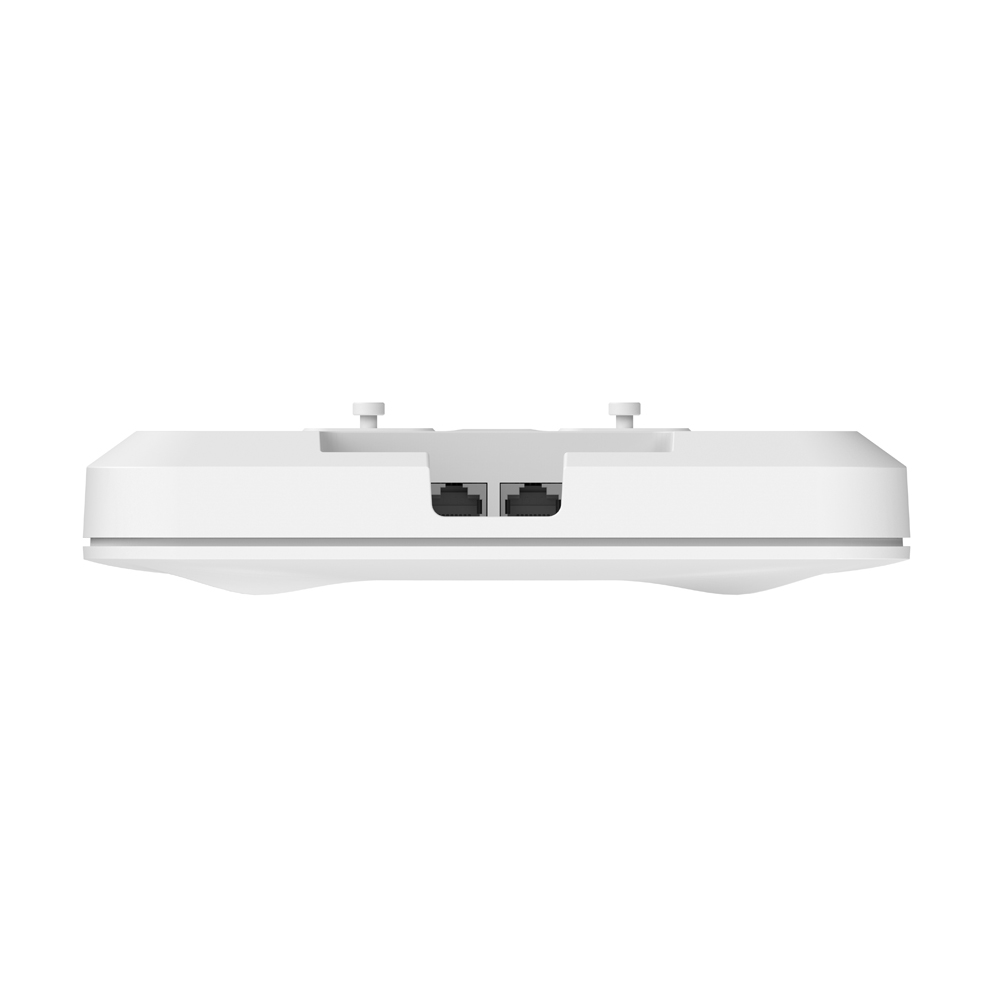

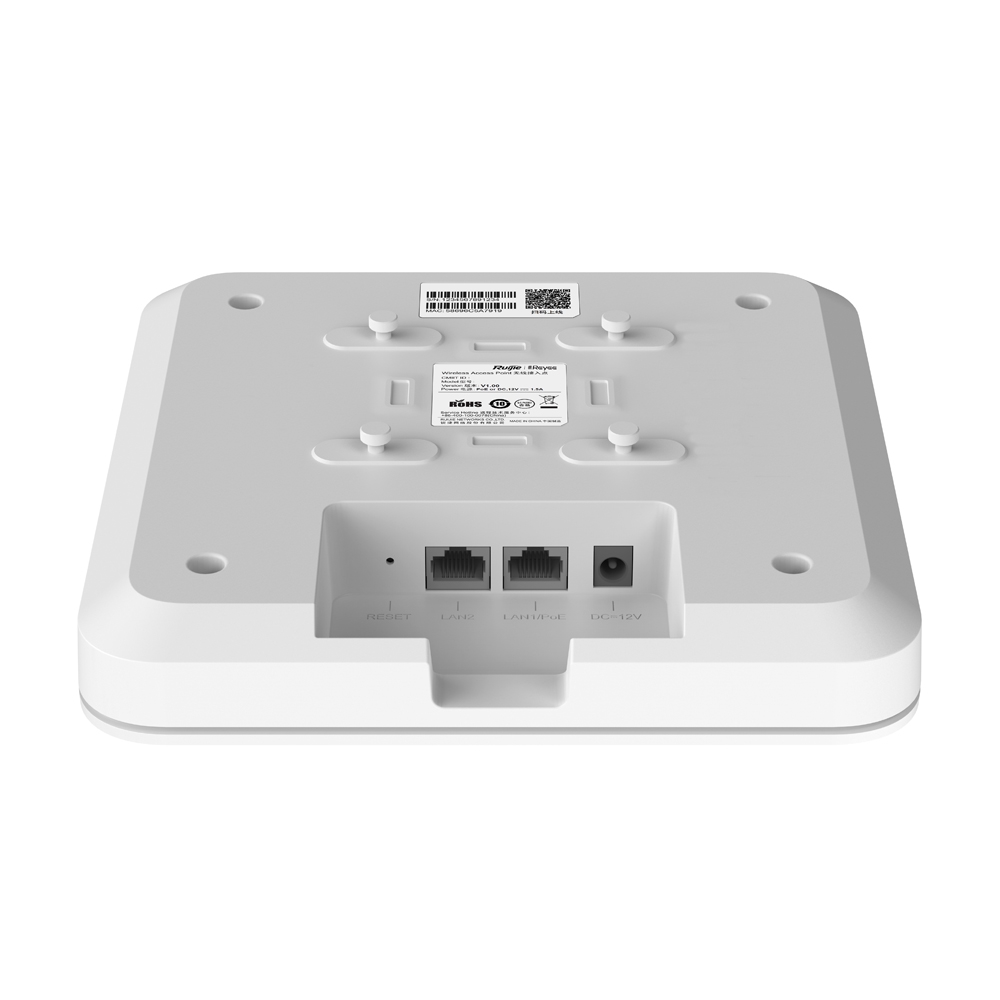

Service Ports

2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE

Management Port

NA

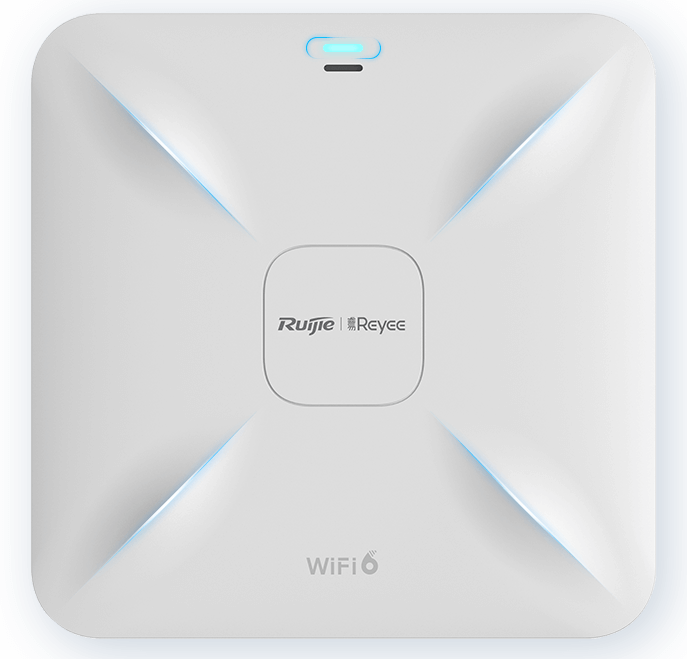

LED Indicator

Single indicator (green light)

Power Supply

Power Consumption

≤ 15.3W

Environment

Operating temperature: 0°C～40°C

Storage temperature: -40°C～70°C

Operating humidity: 5％～95％

(non-condensing)

Storage humidity: 5％～95％

(non-condensing)

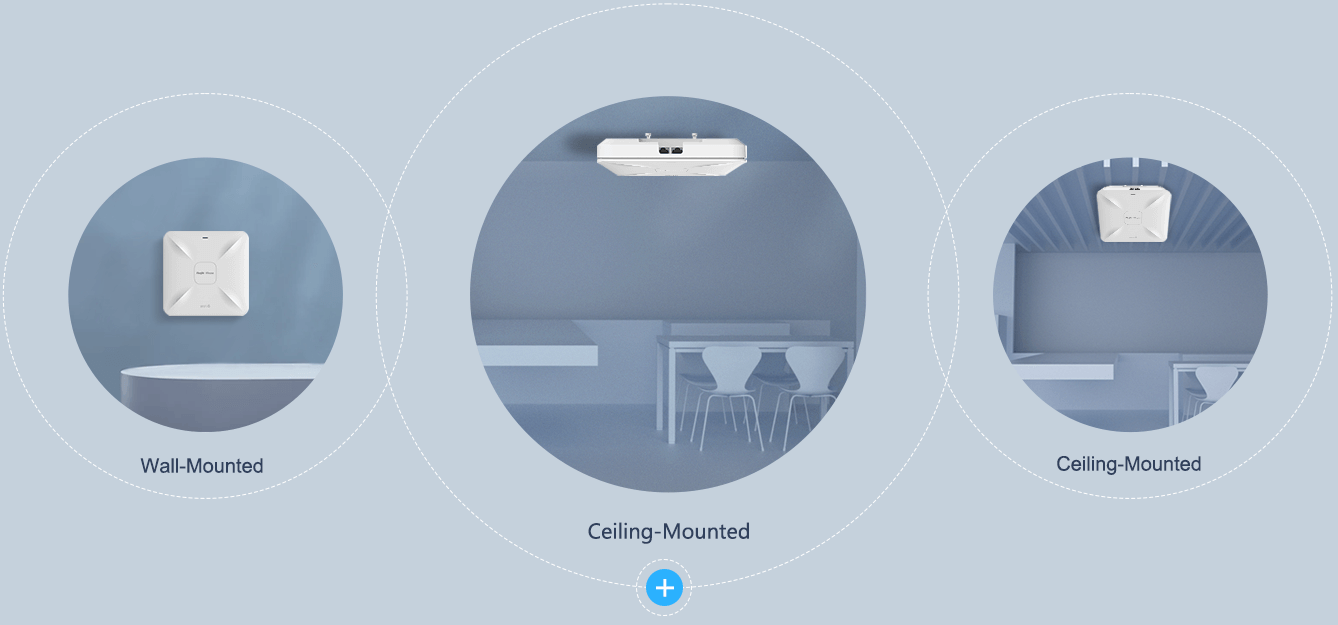

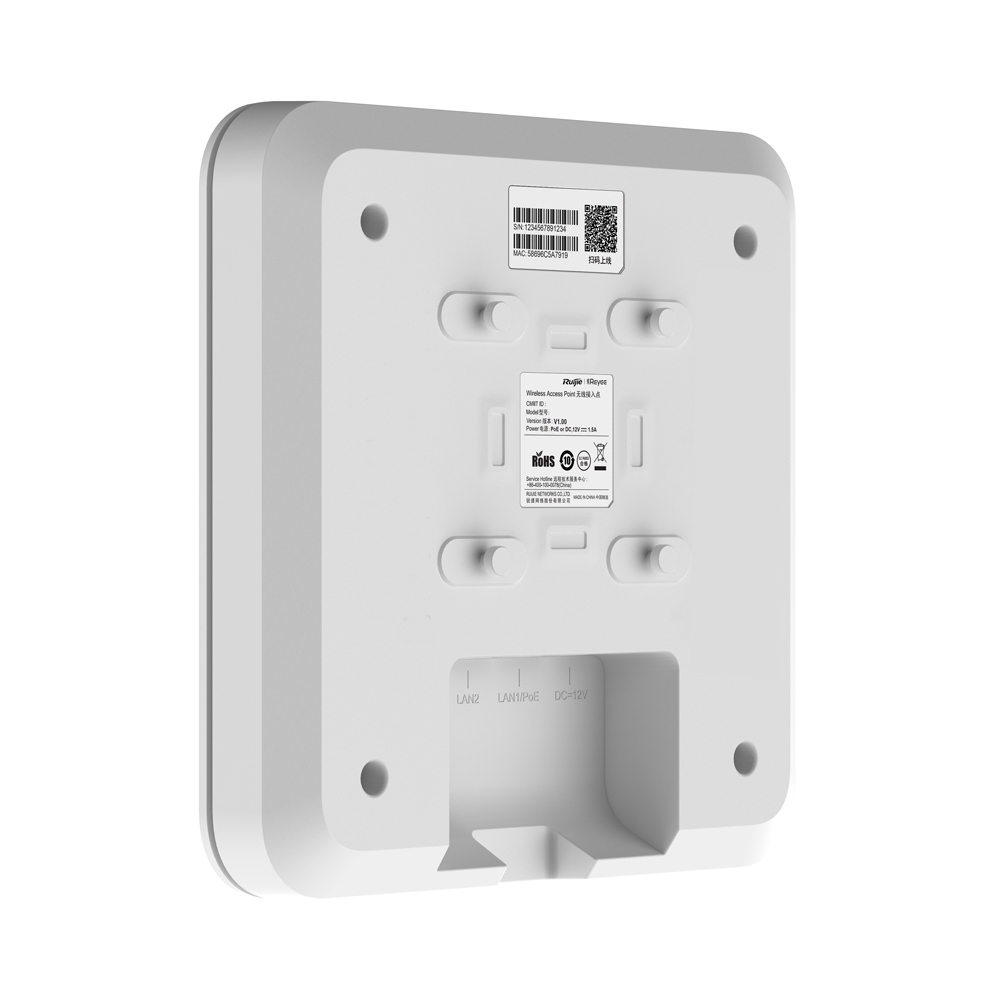

Installation

Ceiling/wall-mountable

Safety Standard

GB4943, IEC 62368-1

EMC Standard

GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035

Vibration Standard

IEC61373

Radio Standard

EN300 328, EN301 893

MTBF

>400000H

Software Features

Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 512

Recommended number of clients: 100

Up to 8 SSIDs

Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication

Support static blacklist and whitelist

Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Support Black List / White List：

Maximum 256 rules per SSID

Maximum 1024 rules per AP

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform

Platform management features

Automatic RF adjustment via the platform

Unified configuration via the platform

Unified monitoring via the platform
